Urinal sensor flusher
It reacts to the presence of a person in front of the urinal at a distance of max. 0.7 m from the sensor for a period longer than 7.5 s. The flushing time is adjustable from 0.5 s to 15.5 s (factory setting 3 s).
The infrared urinal flusher meets the requirements of EU standards and is designed wherever user comfort with maximum water savings is required. Remote control for setting the parameters of infrared sensors is not included in the package.
Parameters:
- water inlet: male thread G 3/4 "
- water outlet: male thread G 3/4 "
- supply voltage: 6V, 4xAA battery
- power consumption max .: 3 VA
- sensor range: 0.6-0.75 m
- water pressure: 0.1-0.6 MPa
- flow: 12l / min

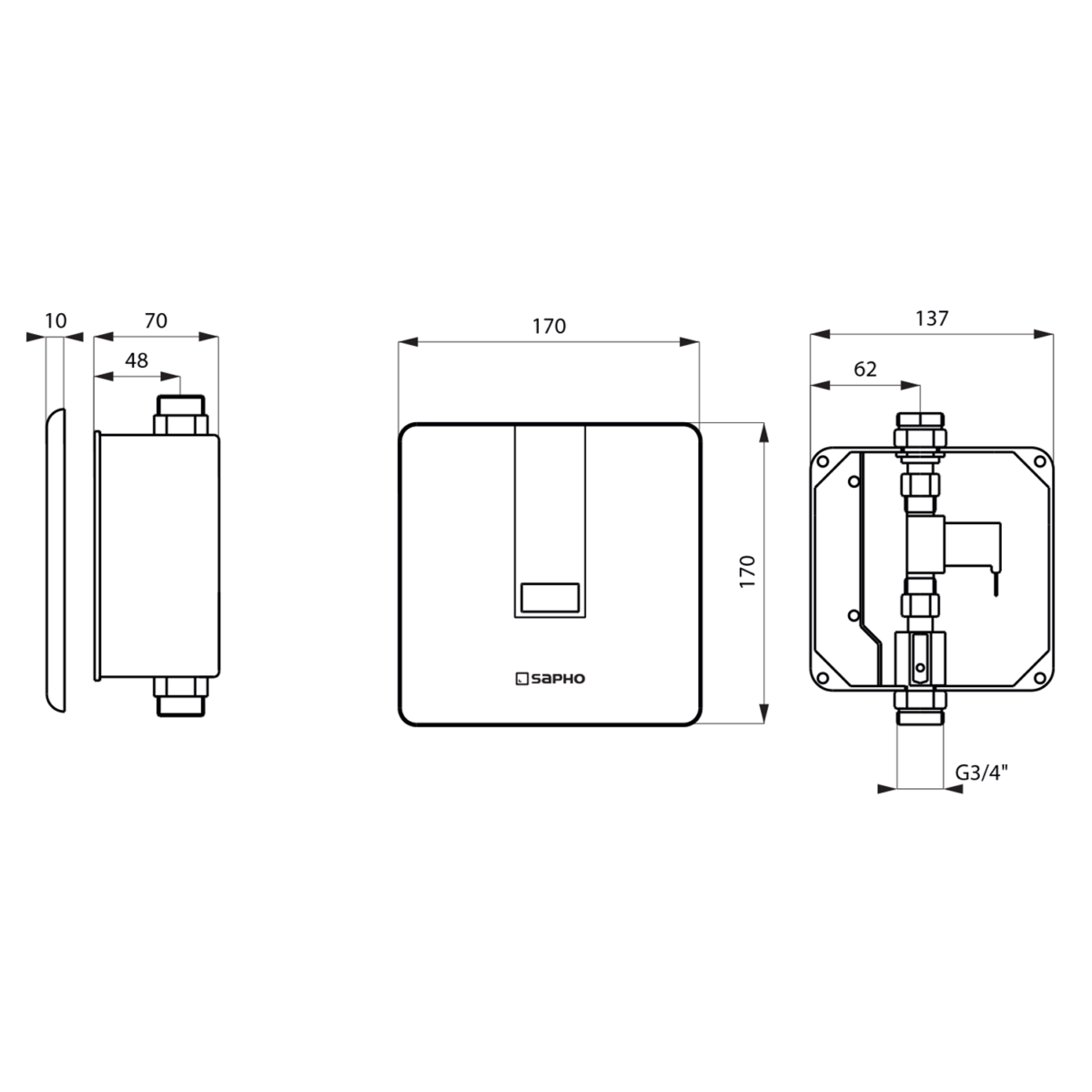

- size of black stainless steel cover 170 x 170 x 10 mm
- mounting box size 140 x 140 x 75 mm
- ambient temperature: +5 ÷ + 40 ° C (must be protected from frost)
- possibility of setting by remote control (flushing time, switching off during cleaning)
- automatic rinsing 24h after the last switching
- weight: 0.9 kg

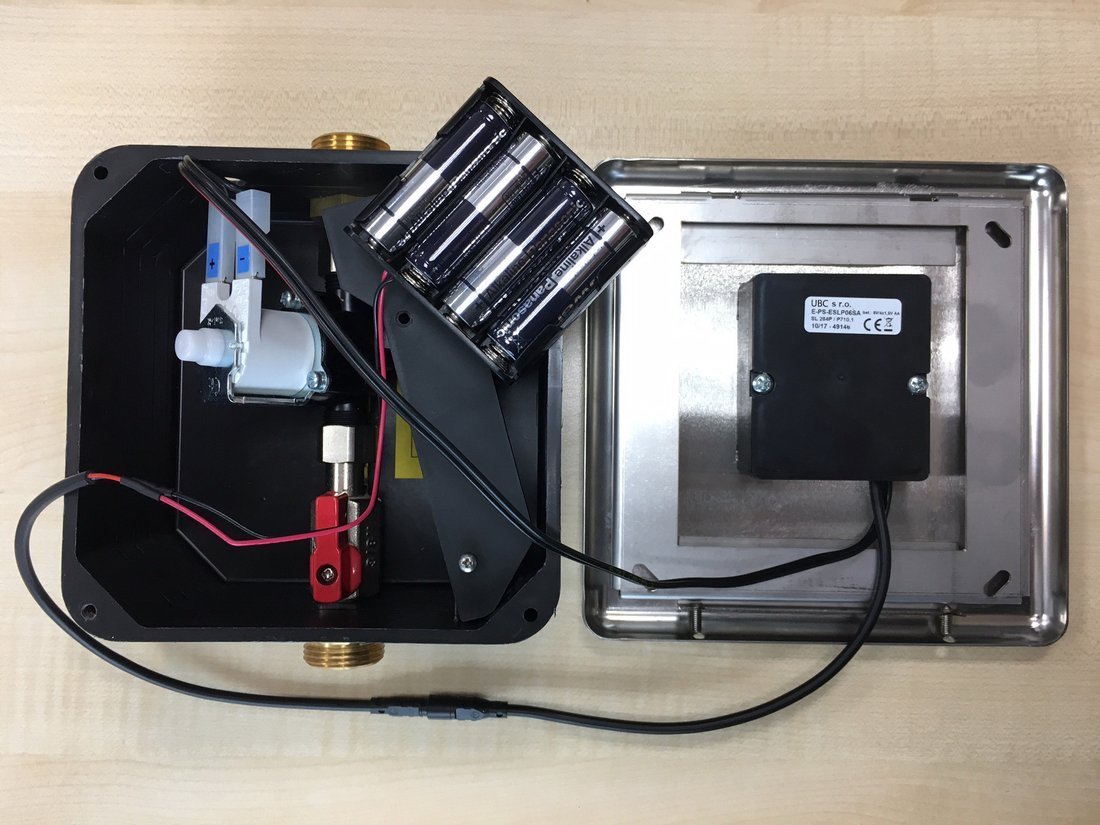

Package contains:

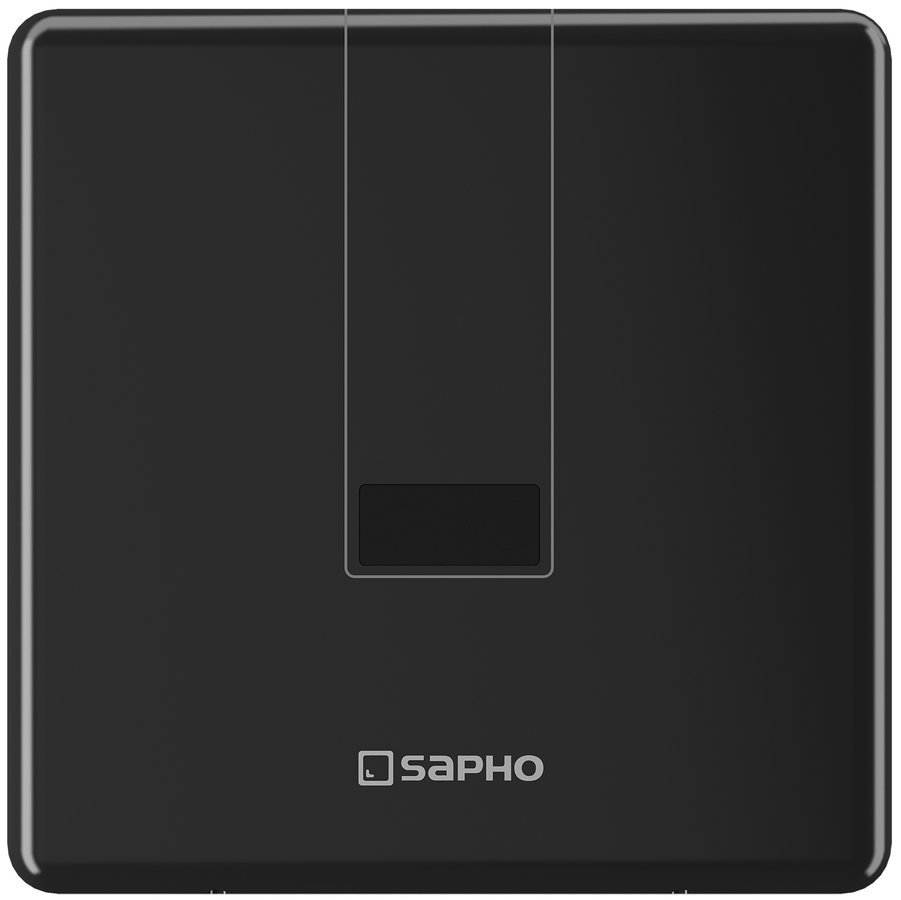

- black stainless steel cover with anti-vandal electronics
- plastic mounting box with screw connection
- solenoid valve
- ball valve
- 4 pcs AA alkaline batteries 1.5 V, 2700 mAh with case
Made in Czech Republic
