Axial fan with HYGRO equipment
The E-150GTH fan is two-speed, runs continuously at a lower speed all day and ventilates the room. If necessary (at the instigation of a built – in humidity sensor or on the basis of a pulse from an external switch), the speed is increased and automatically reduced again after ventilation – controlled by a microprocessor.
- Adjustable humidity sensor – from 40 to 90%
- Adjustable electronic timer from 3 to 15 minutes
- Elegant white glass front panel

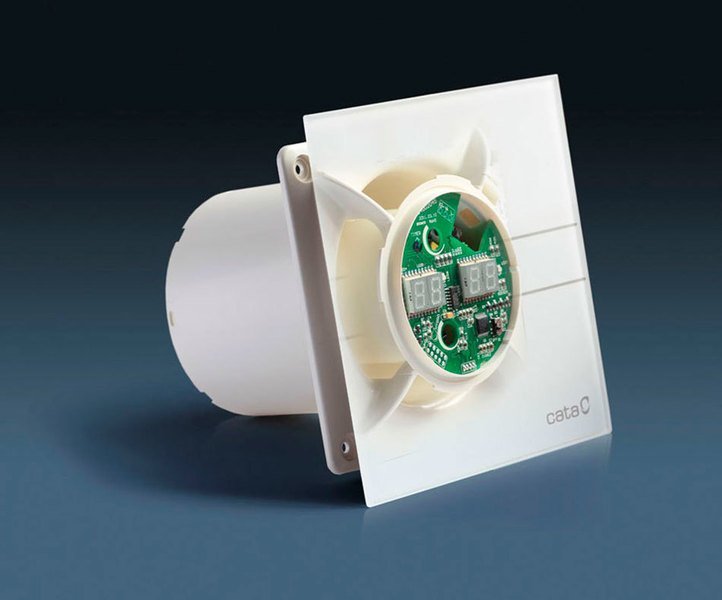

- The board is backlit by a blue LED display showing the current temperature and current relative humidity (in the room)
- Permanently prevents the formation of mold (recommended everywhere where plastic windows have been installed)
- Low power consumption – 10 W (continuous operation), 19 W (full speed)
- Quiet operation – 23 dB (continuous operation), 35 dB (full speed)
- Easy installation without the use of screws
- Degree of protection – IP44
- Output – 225 m3 / h (continuous operation), 350 m3 / h (full output)
- Power supply 230 V / 50 Hz
- The motor has ball bearings
- Check valve to be purchased, not included
All models with HYGRO also include the TIMER function – they have a separate terminal for independent switching of the fan regardless of the set humidity. After applying the phase (button, switch or thermostat) to this terminal, the fan starts, after disconnecting the phase and after the set time has elapsed, the fan switches to automatic humidity monitoring mode.
Top design
- The intake suction, which is popular with kitchen hoods, also gets into bathrooms and toilets (the pipe noise does not flow directly through the fan into the room, but it strikes the front plate, part is bounced back and only a small part radiates to the side – has a beneficial effect on noise reduction )
- Wall and ceiling installation
- For E-100,120,150 GTH, E-100 GSTH and E-100 GBTH, the board is backlit by a blue illuminated display showing the current temperature and relative humidity (in the room)

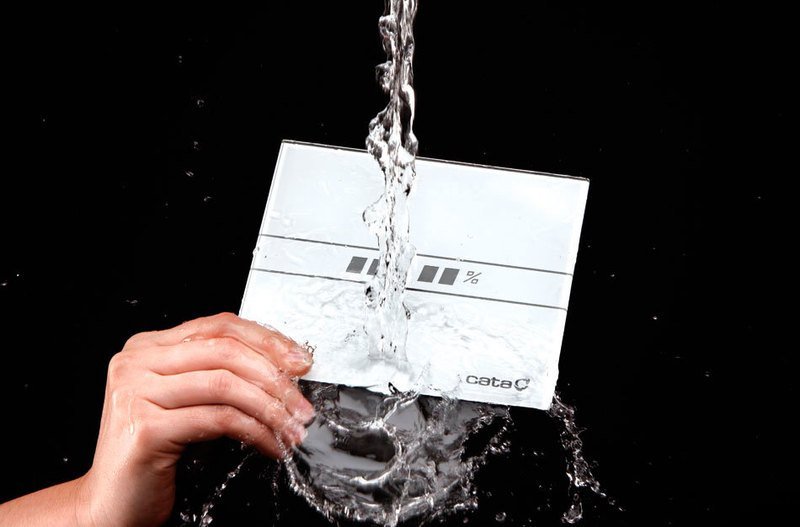

Easy cleaning
- No more gridded dust
- The glass front panel can be easily rotated, washed under running water and mounted back
In the range of 3 fan variants:
STANDARD – activation by external switch in room (marking G)
TIMER – adjustable electronic timer from 3 to 15 minutes (GT designation)
HYGRO – adjustable humidity sensor – from 40 to 90%. Adjustable electronic timer from 3 to 15 minutes. Display with thermometer and hygrometer (GTH).
